Gel.
Deep-Cycle VRLA.

Gelled electrolyte for hot climates and irregular charge profiles. Stronger cycle life than AGM where cycling is the job.

Gel

Lead-Acid VRLA (Gel)

Valve-regulated lead acid with gelled sulfuric-acid electrolyte, immobilized by fumed silica. Sealed, maintenance-free and non-spillable. Gel DC Series deep-cycle blocks for solar, mobility and marine.

Leisure caravan on coastal road
Gel Deep-Cycle
Hot Climate. Marine. Off-Grid.

Thixotropic gel electrolyte. Handles high temperature cycling without acid stratification.

Gel DC Series — Deep-Cycle

Gel ElectrolyteDeep CycleHot ClimateMarine / Off-Grid

Sealed gel VRLA for elevated ambient temperatures and irregular charge profiles. Common applications include equatorial off-grid solar, coastal residential, inland tropical installs, marine house banks and mobility equipment.

Sealed VRLA, maintenance-free. No topping up. Multi-orientation install. Higher cycle count than equivalent flooded lead-acid under elevated temperature per manufacturer testing.

24 to 240 Ah at C10. Design float life ten years at 25 °C. Cycle life 2,500 at 25% DoD per manufacturer test. Operating range −20 to 55 °C.

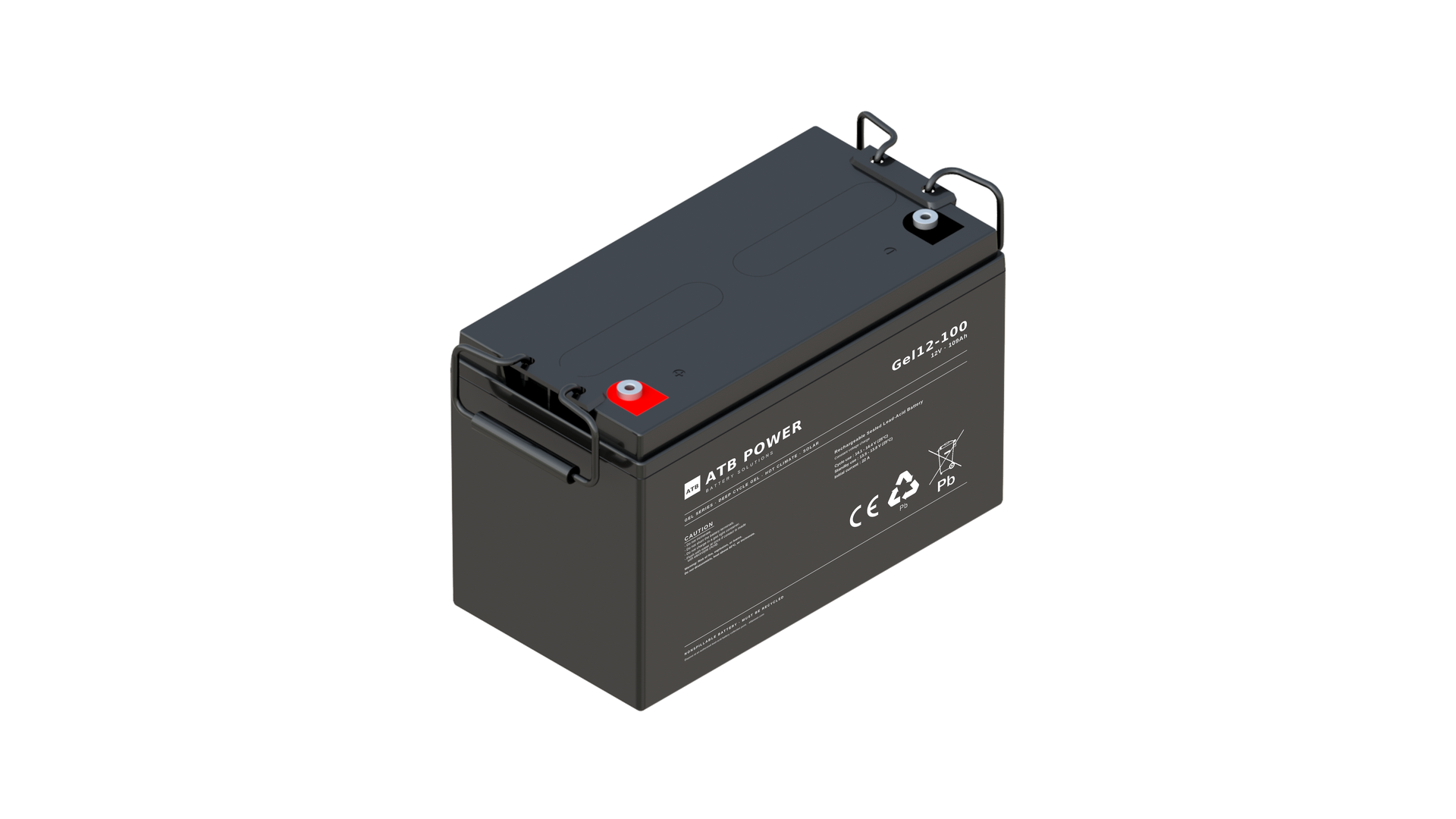

ATB Gel 12-100 deep-cycle battery
Gel-12V series specifications
ModelVoltageC20 (Ah)C10 (Ah)C5 (Ah)Dimensions (mm)WeightTerminal
ATB Gel 12-2412V26Ah24Ah21Ah165 × 126 × 1758.5 kgM6
ATB Gel 12-3812V41Ah38Ah33Ah197 × 166 × 17012.7 kgM6
ATB Gel 12-5012V54Ah50Ah43Ah230 × 138 × 21016.7 kgM6
ATB Gel 12-6512V71Ah65Ah57Ah260 × 168 × 21123.5 kgM6
ATB Gel 12-8012V87Ah80Ah70Ah308 × 168 × 21128 kgM6
ATB Gel 12-10012V109Ah100Ah87Ah332 × 175 × 21530 kgM8
ATB Gel 12-12012V130Ah120Ah104Ah482 × 170 × 24042 kgM8
ATB Gel 12-15012V163Ah150Ah130Ah532 × 207 × 21552 kgM8
ATB Gel 12-18012V196Ah180Ah157Ah522 × 240 × 21860 kgM8
ATB Gel 12-20012V217Ah200Ah174Ah522 × 240 × 21864 kgM8
ATB Gel 12-24012V261Ah240Ah209Ah520 × 268 × 22074 kgM8

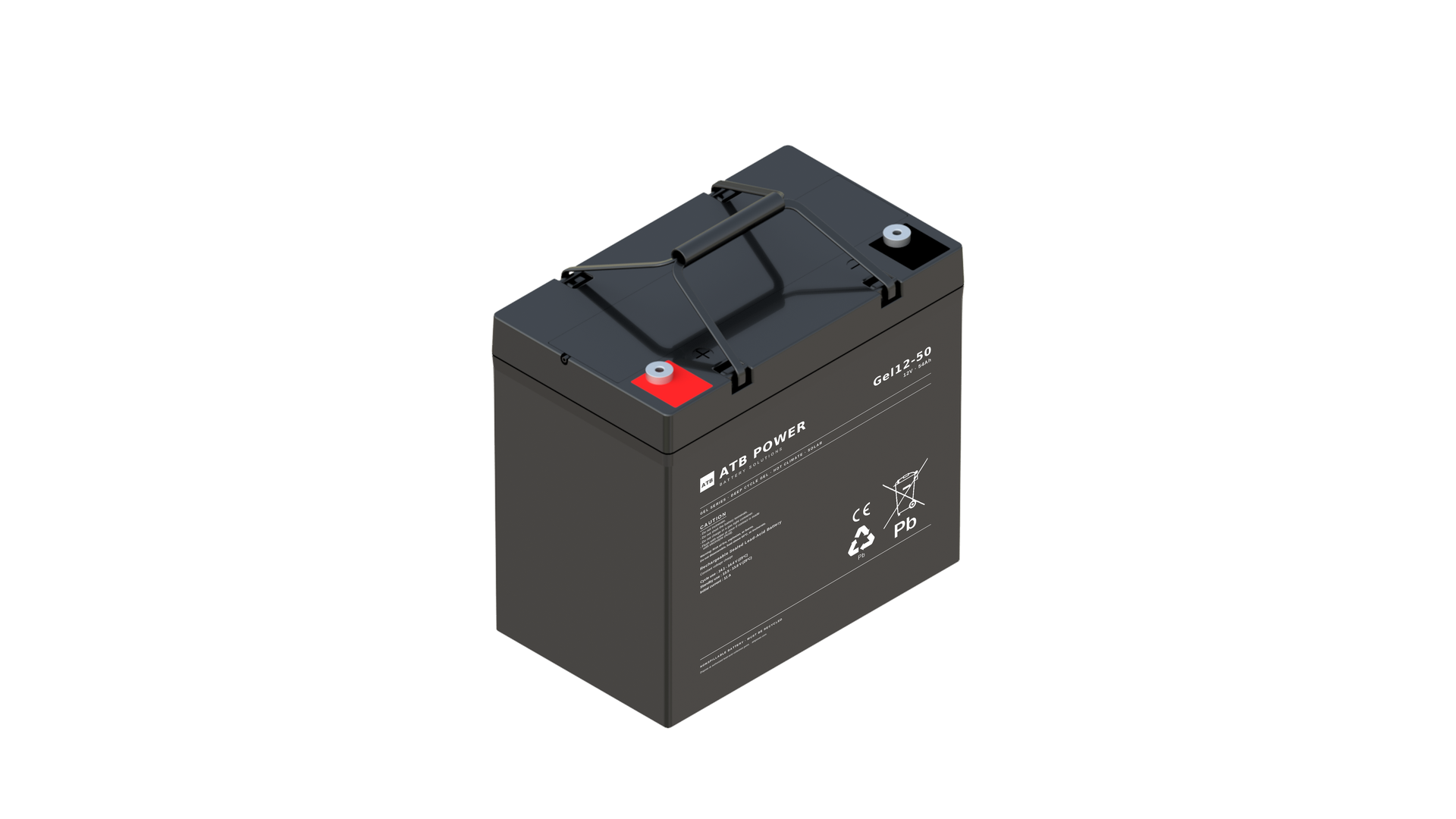

ATB Gel 12-50 batteryGel 12-50
ATB Gel 12-100 batteryGel 12-100

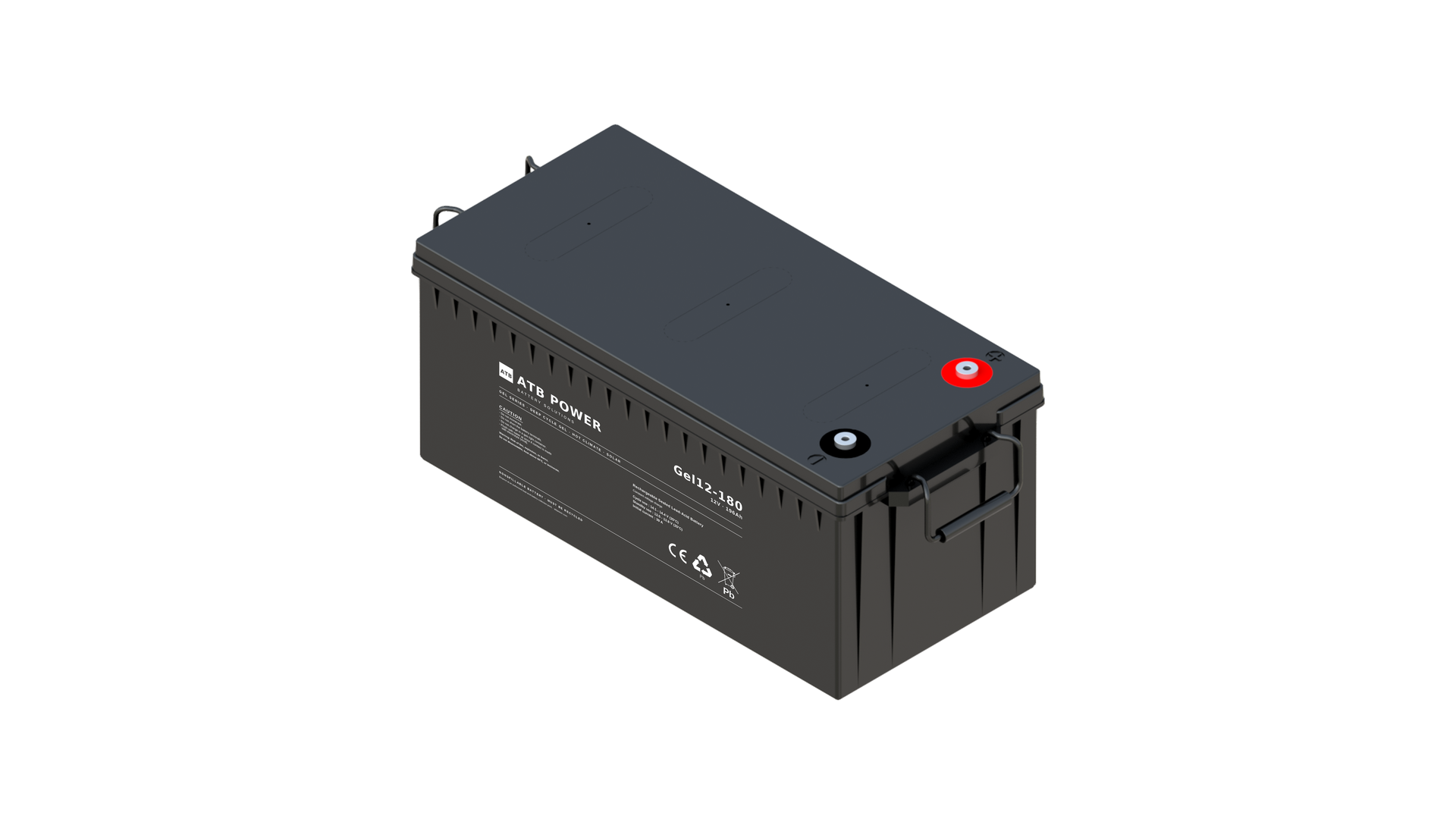

ATB Gel 12-180 batteryGel 12-180
ATB Gel 12-240 batteryGel 12-240

Tall Gel Series — Long-Life UPS / Back-Up

Gel ElectrolyteTall Form FactorUPS / Back-UpSealed VRLA

Tall-form-factor gel block for standby UPS strings and back-up duty where the cabinet footprint is narrow and headroom is available. Same gelled electrolyte chemistry as the Gel DC range, optimised for long-life float service.

Sealed VRLA, gas-recombinant, maintenance-free. Multi-orientation install. Stable float voltage across high ambient temperatures.

200 Ah at C20 in a single 12 V block. Design float life ten years at 25 °C. Lug terminal for cabinet bus-bar interconnect.

ATB Gel 12-200T tall-form gel battery
Tall Gel series specifications
ModelVoltageC20 (Ah)C10 (Ah)C5 (Ah)Dimensions (mm)WeightTerminal
ATB Gel 12-200T12V200Ah180Ah150Ah382 × 180 × 35163.5 kgLUG
